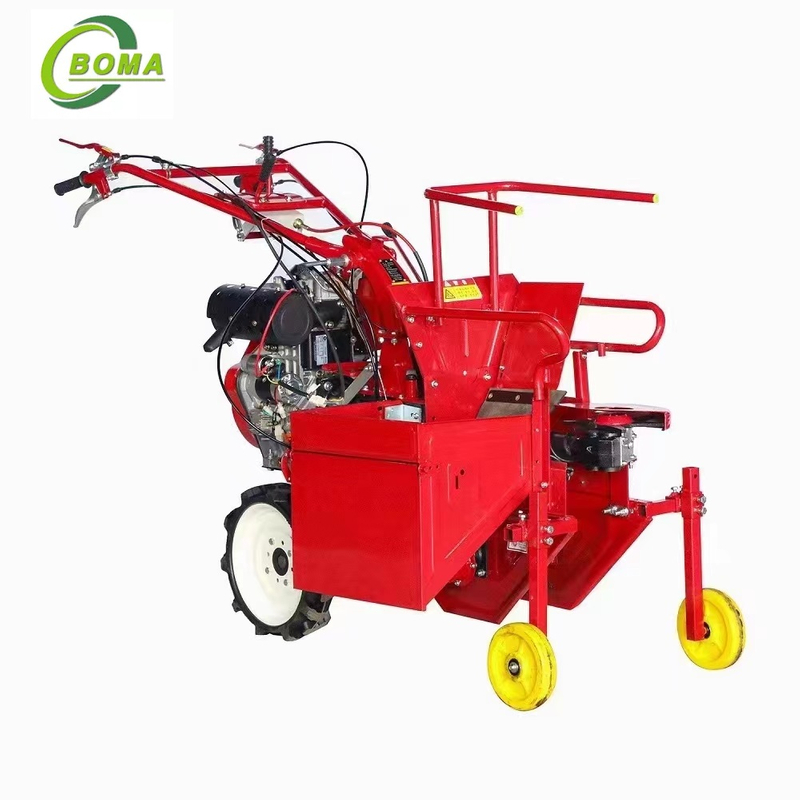

Small Corn Harvester Self-propelled Hand-pushing Type Corn Picker Machine

Maize harvesting machine is the small type corn harvester,the machine can work single row corn, the machine can work with tiller and walk tractor.Supporting the collection of the bucket is full, you can take off the filling bag, the height of the stay is adjustable, the tension clutch works safely, and the turning radius is small.
Availability:
Quantity:
  • BOMA-4YZ-1

Product Description

Small Corn Harvester Self-propelled Hand-pushing Type Corn Picker Machine

corn harvester (1)



Name 188 diesel-electric start corn harvester 192 diesel-electric start corn harvester 195 diesel-electric start corn harvester
Model 4YZ-1 4YZ-1 4YZ-1
Structure type Hand-held four-wheel self-propelled Hand-held four-wheel self-propelled Hand-held four-wheel self-propelled
Engine 188F diesel engine 192F diesel engine 195F diesel engine
power 7.5KW 9.2KW 10KW
overall size 2200x850x1200 mm 2200x850x1200 mm 2200x850x1200 mm
Machine weight 220 kg 240 kg 260 kg
Drive method gear drive gear drive gear drive
handrail adjustment horizontal 180° adjustable , vertical 30° adjustable horizontal 180° adjustable , vertical 30° adjustable horizontal 180° adjustable , vertical 30° adjustable
Main clutch form wet style wet style wet style
harvesting rows   1 Row 1 Row 1 Row
integrity rate ≥95% ≥95% ≥95%
working speed ≥0.3m/s ≥0.3m/s ≥0.3m/s
knives 12 knives 12 knives 12 knives
Tire 400-8 solid tire 400-8 solid tire 400-8 solid tire



BOMA Small Corn Harvester Self-propelled Hand-pushing Type Corn Picker Machine is a new invention. It highly improves the working efficiency of harvesting corns.

The mini corn harvesting machine can harvest corns and crush straws at the same time.

The corn straws are grinded directly as fertilizer for the field.

The harvesting efficiency of BOMA corn harvester reaches 700m2 to 1000m2 per hour


Product Show

corn harvester (3)corn harvester (5)corn harvester (4)corn harvester (2)16673790013364443mini corn reaper42corn harvester46

Advantages

√ High working efficiency, multifuntional

High working efficiency. 2 hours corn harvesting work is just finished  in 10 Minutes.

It has multifunctoins just like the large combined harvester, picking corns and crushing straws at the same time.



√ Affordable price

 BOMA corn harvester is much smaller compared with tranditional combine harvester.

 Farmers can afford this mini corn reaper for family use or other uses.



√ Wide applications

This mini corn reaper has strong adaptability in different fields, no matter big or small field, our harvesting machine works well. Combine corn harvester can only work in large field.



√ Strong power, easy to operate

It has strong power, and easy to operate and easy to maintain. The height of the harvester is adjustable.
